Re: I've built my own single 9V dc beck's blood cleaner
Q: from pin 8 on 7660 go up to second rectifier - it should read around 17V
-go up to fourth rectifier - it should read around 25V and -go up to last rectifier it should read around 33V
A: I have made the changes i said before with the 0.1 cap etc, now i have 17.6v at the second rectifier , and 26v at the fourth rectifier and then i have a problem on the top two i have problems as the second 1 down starts at 4v when i put the tester on and then it immediately comes down when i put the probes on, the top 1 changes a little bit too but it reads around 1v. These are all tested as you said, from negative bus bar to the right hand side where the line is on each rectifier. Also when i keep testing all of them randomly during the day, sometimes they start at a certain voltage and then they come down the longer i leave the tester on.???????
Q: When measuring voltages on CS jack, measure on the connecting leads to the jack with both probes. Do the same for the electrodes jack. Make sure the switch is on to get reading for both jacks.
A: When i pug in the jack lead on CS maker and check that voltage between the ends i get 0.5v, then on the zapper i get 0v

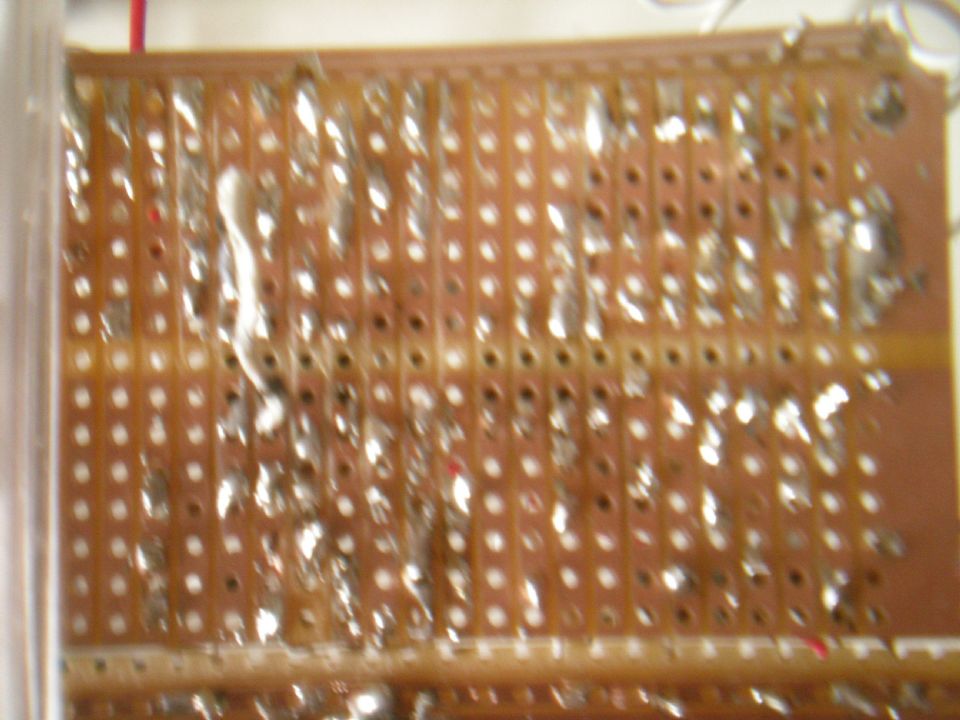

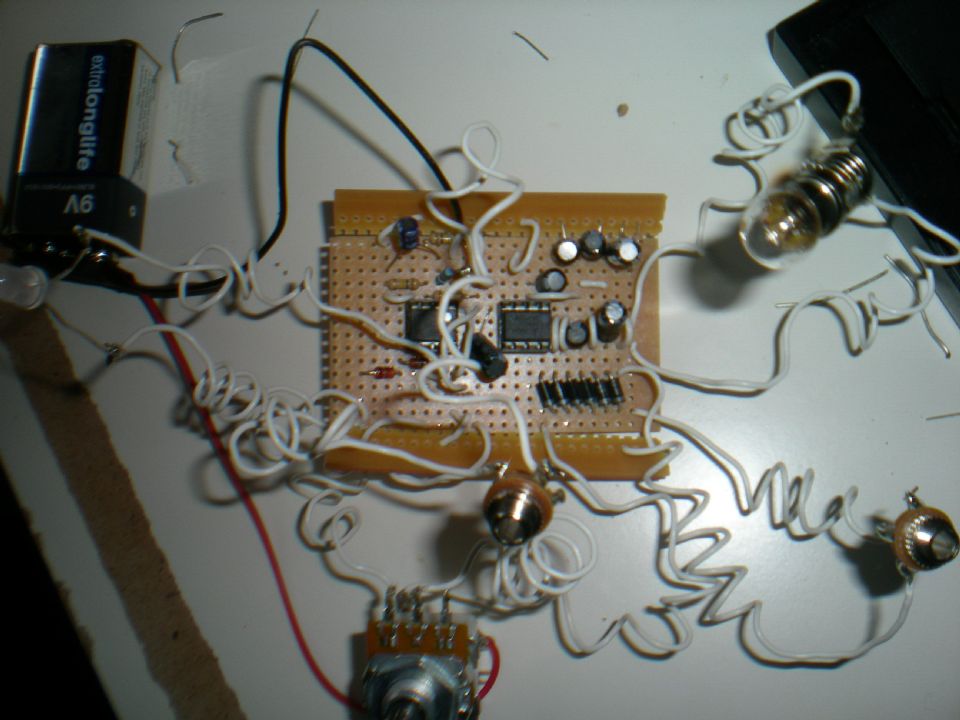

HERE ARE MY PICS, I KNOW ITS A MESS LOL, i did not find a suitable board so i attached my own bus bars.
